Injector valve injector BMW M30 B30 E23 E24 E28 E30 E32 E34 320i 323i 6 zy

30-piece seal kit, repair kit, overhaul kit, injector nozzles for BMW M30 B30 E23 E24 E30 E34 320i M-Power 6 cyl.

Over the years, dirt and dust build up in the injection nozzles.

The O-rings harden over time. The main causes are moisture and mechanical stress.

The effects of fats, oils and heat can also intensify this development. It is a slow but inconspicuous process.

By replacing the seal repair kit as shown in our pictures, you can overhaul your injectors.

For this it is necessary to replace the leaky seals with our new and qualitative ones.

The consequences of an injection nozzle fault can be higher fuel consumption, local overheating, especially when the faulty spray pattern becomes a thin spray and hits the piston crown.

Jerking or stuttering engine, starting difficulties and even engine damage are possible!

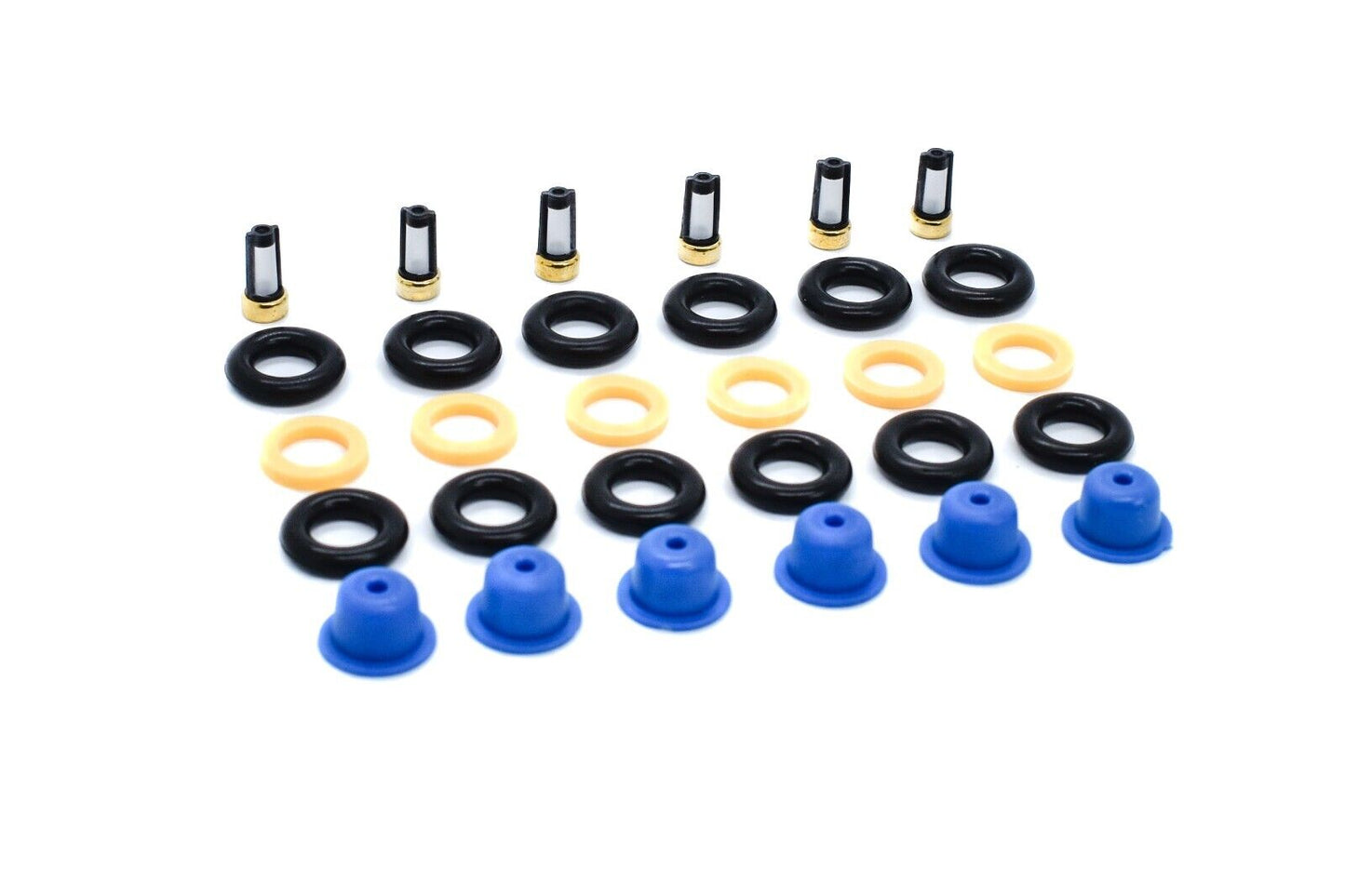

Scope of delivery, see pictures:

6x filter inserts

12x O-ring / black

6x plastic ring / yellow

6x retaining caps / blue

Suitable for the following BMW models with M30 engine:

BMW 535 i [E 28] 160KW/ 218PS 3.4l 09.1984 – 08.1986

BMW 628 CSi [E 24] 135KW/ 184PS 2.8l 04.1981 – 09.1984

BMW 628 CSi [E 24] 135KW/ 184PS 2.8l 09.1984 – 12.1987

BMW 635 CSi [E 24] (USA) 135KW/ 182PS 3.4l 09.1984 – 04.1989

BMW 635 CSi [E 24] 150-162KW/ 204-220PS 3.4l 10.1984 – 01.1986

BMW 728 i [E 23] 135KW/ 184PS 2.8l 06.1981 – 06.1986

BMW 735 i [E 23] (USA) 135KW/ 182PS 3.4l 09.1984 – 06.1986

BMW 735 i [E 23] 136-141KW/ 185-192PS 3.4l 01.1985 - 08.1986

BMW 735 i [E 23] 160KW/ 218PS 3.4l 10.1984 – 01.1986

BMW 530 i [E 34] 138KW/ 188PS 3.0l 01.1988 – 12.1990

BMW 535 i [E 28] (USA) 134KW/ 182PS 3.4l 09.1986 – 12.1987

BMW 535 i [E 28] 136-141KW/ 185-192PS 3.4l 09.1986 – 12.1987

BMW 535 i [E 28] 160KW/ 218PS 3.4l 09.1986 – 12.1987

BMW 535 i [E 34] 155KW/ 211PS 3.5l 01.1988 – 04.1993

BMW 735 i,iL [E 32] 155-162KW/ 211-220PS 3.4l 09.1986 – 12.1992

BMW M 535 i [E 28] 136-141KW/ 185-192PS 3.4l 09.1986 – 12.1987

BMW M 535 i [E 28] 150-160KW/ 204-218PS 3.4l 09.1986 – 12.1987

BMW 525 i [E 28] 110KW/ 150PS 2.5l 06.1981 – 12.1987

BMW 528 i [E 28] 135KW/ 184PS 2.8l 06.1981 – 12.1987

BMW 535 i [E 28] (USA) 134KW/ 182PS 3.4l 09.1984 – 12.1987

BMW 535 i [E 28] 136-141KW/ 185-192PS 3.4l 01.1985 - 08.1986

BMW 635 CSi [E 24] (USA) 135KW/ 182PS 3.4l 01.1986 – 04.1989

BMW 635 CSi [E 24] 136-155KW/ 185-211PS 3.4l 01.1985 – 04.1989

BMW 635 CSi [E 24] 150-162KW/ 204-220PS 3.4l 02.1986 – 04.1989

BMW 730 i,iL [E 32] 136-145KW/ 184-197PS 3.0l 09.1986 – 06.1994

BMW 735 i [E 23] (USA) 135KW/ 182PS 3.4l 01.1986 – 06.1986

BMW 735 i [E 23] 160KW/ 218PS 3.4l 09.1985 – 06.1986
