Injector seal repair kit - VW Passat 3B2 / 3B5 / 3B6 / EA824

24-piece seal kit repair kit for injection nozzles including filter

Over the years, dirt and dust build up in the injection nozzles.
The O-rings harden over time. The main causes are moisture and mechanical stress.
The effects of fats, oils and heat can also intensify this development. It is a slow but inconspicuous process.

By replacing the seal repair kit as shown in our pictures, you can overhaul your injectors.
For this it is necessary to replace the leaky seals with our new and qualitative ones.

The consequences of a faulty injection nozzle can be higher fuel consumption, local overheating, especially when the faulty spray pattern becomes a thin spray and hits the piston crown.

Jerking or stuttering engine, starting difficulties and even engine damage are possible!

Injector comparison number: 079133551A / 077133551M / 0280156273 / 0280156180 / 0280155921

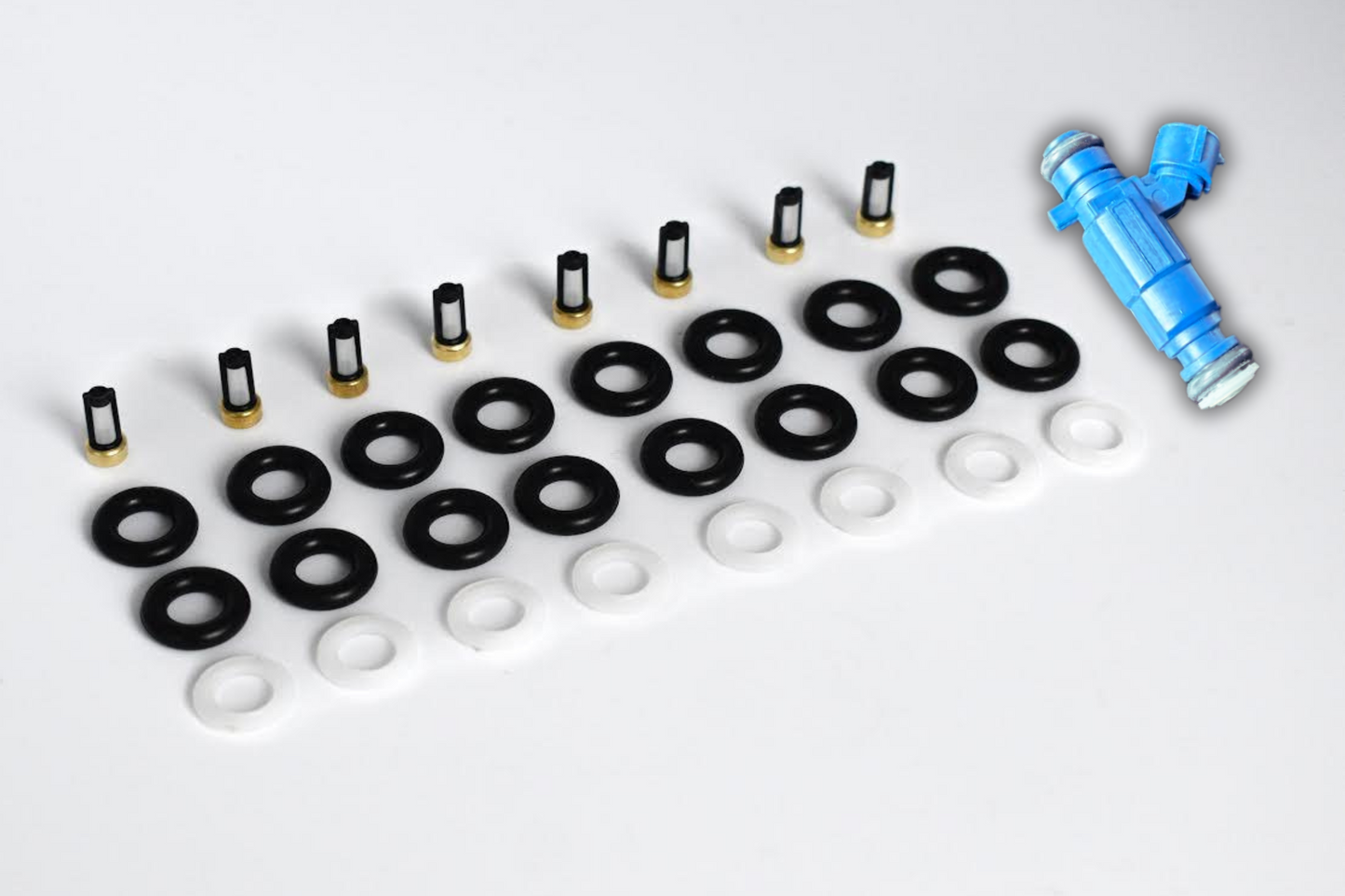

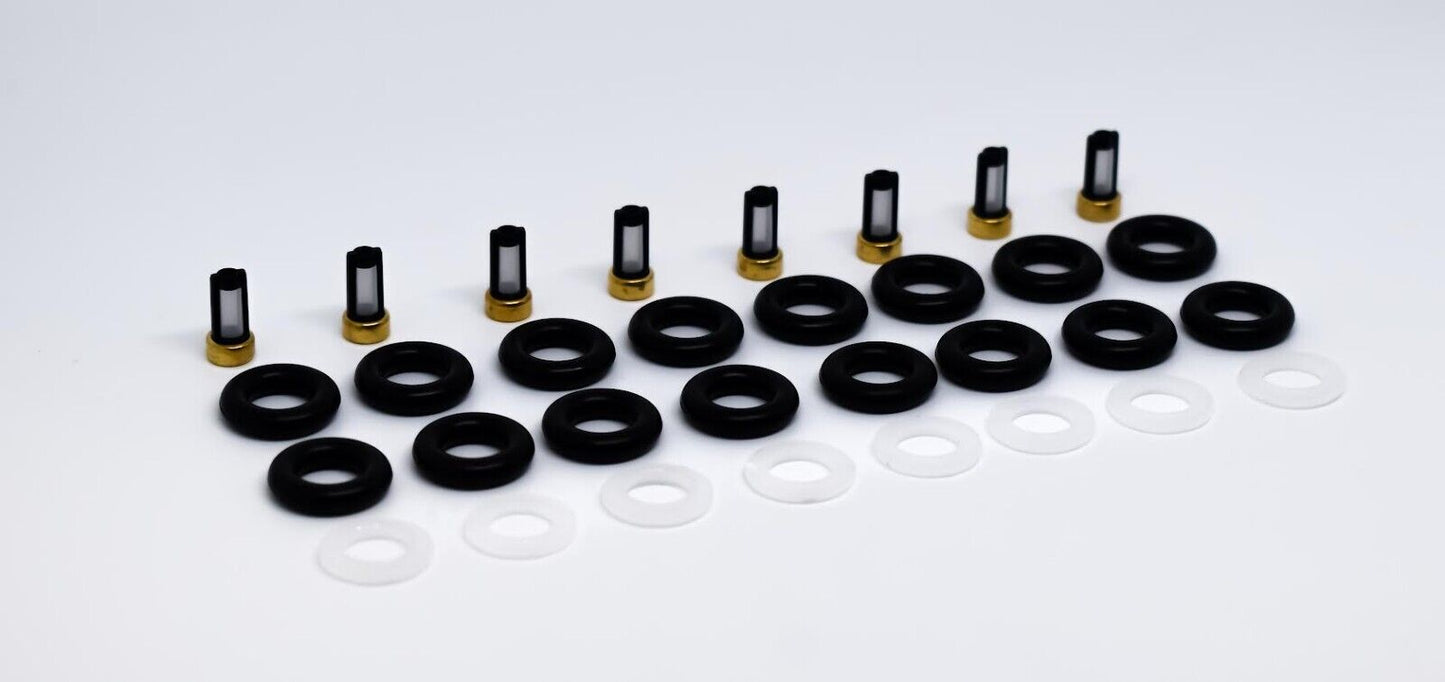

Scope of delivery, see pictures:
6x filter inserts
6x O-ring top / black
6x O-ring bottom / black
6x plastic ring / white

Suitable for EA824 engines and also:

Passat 2.8 4Motion [3B2] (CDN, USA) 142KW/ 193PS 2.8l 09.1999 - 08.2000

Passat 2.8 4Motion [3B3] 140KW/ 190PS 2.8l 10.2000 - 05.2005

Passat 2.8 4Motion [3B3] 142KW/ 193PS 2.8l 10.2000 - 05.2005

Passat 2.8 Syncro [3B2] (AM,AS,CDN,USA) 0KW/ 0HP 2.8l 09.1998 - 08.1999

Passat 2.8 Syncro [3B2] 142KW/ 193PS 2.8l 01.1997 - 11.2000

Passat 2.8 Syncro [3B2] 142KW/ 193PS 2.8l 01.1999 - 11.2000

Passat 2.8 Syncro [3B2] 142KW/ 193PS 2.8l 06.1997 - 11.2000

Passat 2.8 Syncro [3B2] 142KW/ 193PS 2.8l 10.1999 - 11.2000

Passat 2.8 Variant 4Motion [3B6] 140KW/ 190PS 2.8l 10.2000 - 05.2005

Passat 2.8 Variant 4Motion [3B6] 142KW/ 193PS 2.8l 10.2000 - 05.2005

Passat 2.8 Variant Syncro [3B5] (CDN,USA) 0KW/ 0PS 2.8l 09.1998 - 08.1999

Passat 2.8 Variant Syncro [3B5] 142KW/ 193PS 2.8l 01.1997 - 08.2000

Passat 2.8 Variant Syncro [3B5] 142KW/ 193PS 2.8l 01.1999 - 08.2000

Passat 2.8 Variant Syncro [3B5] 142KW/ 193PS 2.8l 06.1997 - 08.2000

Passat 2.8 Variant Syncro [3B5] 142KW/ 193PS 2.8l 10.1999 - 08.2000

Passat 2.8 Variant [3B5] (CDN, USA) 142KW/ 193PS 2.8l 06.1998 - 08.1999

Passat 2.8 Variant [3B5] (CDN, USA) 142KW/ 193PS 2.8l 09.1999 - 08.2000

Passat 2.8 Variant [3B5] 140KW/ 190PS 2.8l 10.1999 - 11.2000

Passat 2.8 Variant [3B6] 140KW/ 190PS 2.8l 10.2000 - 05.2005

Passat 2.8 Variant [3B6] 142KW/ 193PS 2.8l 10.2000 - 05.2005

Passat 2.8 [3B2] (AM,AS,CDN,USA) 0KW/ 0HP 2.8l 10.1997 - 08.1999

Passat 2.8 [3B2] (CDN,USA) 142KW/ 193HP 2.8l 09.1999 - 08.2000

Passat 2.8 [3B2] (GUS) 132KW/ 180PS 2.8l 01.1997 - 11.2000

Passat 2.8 [3B2] 140KW/ 190PS 2.8l 10.1999 - 11.2000

Passat 2.8 [3B3] 140KW/ 190PS 2.8l 10.2000 - 05.2005

Passat 2.8 [3B3] 142KW/ 193PS 2.8l 10.2000 - 05.2005

Passat 2.8i [B5] 140KW/ 190PS 2.8l 01.2002 - 02.2007
