Injector seal kit Mercedes Viano ML GS SL SE 280 300 320 350

24-piece seal kit repair kit for injection nozzles including filter for Mercedes Viano ML GS SL SE 280 300 320 350

Over the years, dirt and dust build up in the injection nozzles.
The O-rings harden over time. The main causes are moisture and mechanical stress.
The effects of fats, oils and heat can also intensify this development. It is a slow but inconspicuous process.

By replacing the seal repair kit as shown in our pictures, you can overhaul your injectors.
For this it is necessary to replace the leaky seals with our new and qualitative ones.

The consequences of a faulty injection nozzle can be higher fuel consumption, local overheating, especially when the faulty spray pattern becomes a thin spray and hits the piston crown.

Jerking or stuttering engine, starting difficulties and even engine damage are possible!

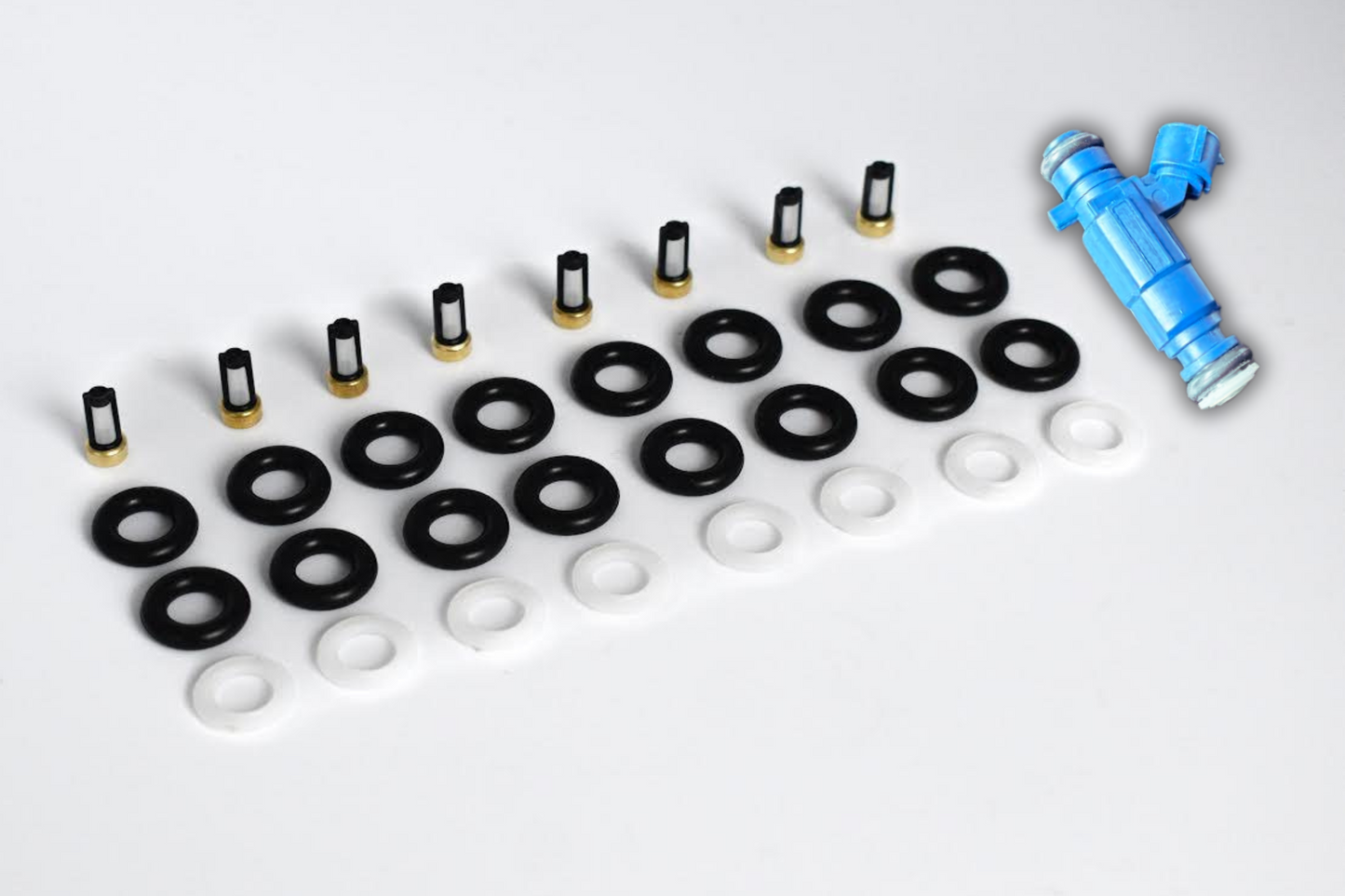

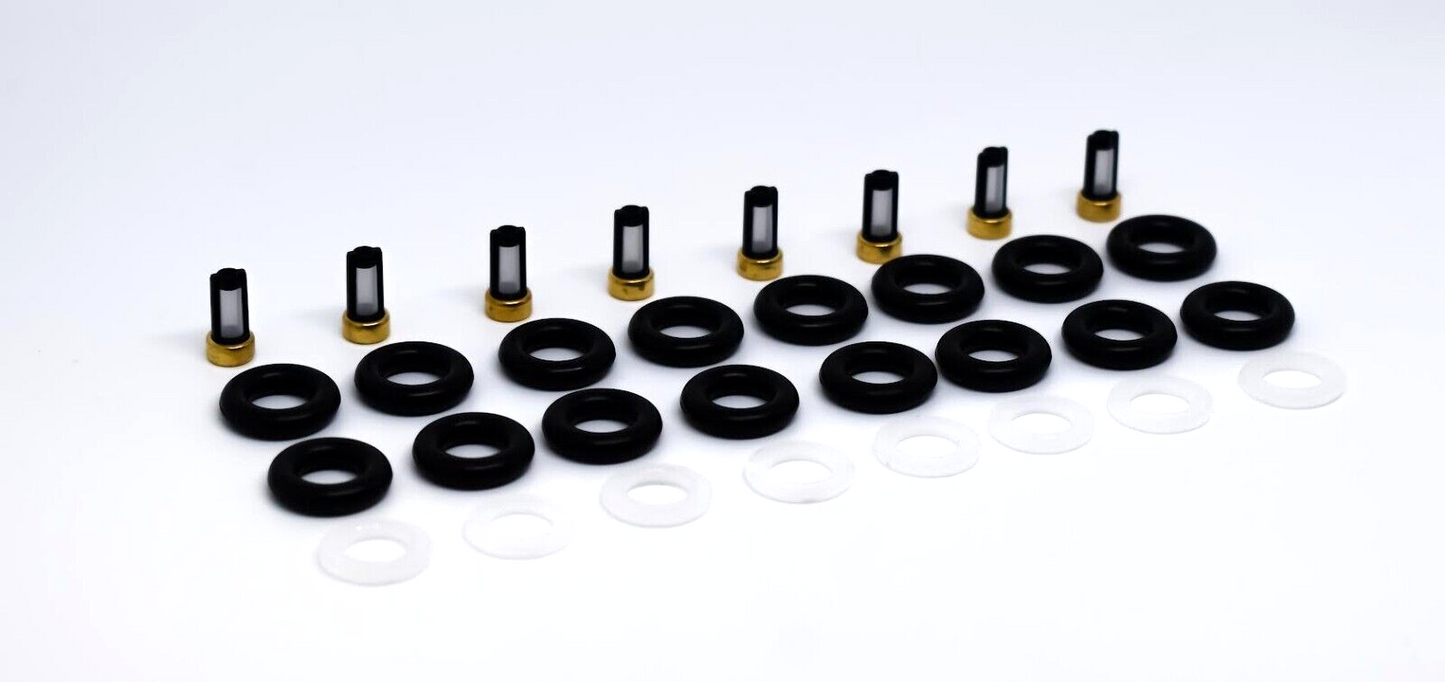

Scope of delivery, see pictures:
8x filter inserts
8x O-ring top / black
8x O-ring bottom / black
8x plastic ring / white

Suitable for:

G 320 [463] 154KW/ 209PS 3.2l 06.1997 - 11.1997

G 320 [463] 158KW/ 215HP 3.2l 12.1997 - 08.2000

ML 320 [163] 160KW/ 218HP 3.2l 03.1998 - 08.2000

S 280 [220] 150KW/ 204HP 2.8l 01.1999 - 08.2000

S 320 [220] 165KW/ 224PS 3.2l 10.1998 - 08.2000

SL 280 [129] 150KW/ 204PS 2.8l 06.1998 - 08.2001

SL 320 [129] 165KW/ 224PS 3.2l 06.1998 - 08.2001

300 SE 2.8 [140] 142-145KW/ 193-197HP 2.8l 09.1992 - 05.1993

300 SE [140] 170KW/ 231PS 3.2l 03.1991 - 05.1993

S 280 [140] 142-145KW/ 193-197HP 2.8l 06.1993 - 09.1998

S 320 [140] 170KW/ 231PS 3.2l 05.1993 - 02.1999

S 320 [140] 170KW/ 231PS 3.2l 09.1996 - 09.1998

SL 320 [129] (USA) 170KW/ 231PS 3.2l 09.1993 - 05.1998

SL 320 [129] 170KW/ 231PS 3.2l 07.1993 - 05.1998

G 320 [463] 158KW/ 215PS 3.2l 09.2000 - 08.2006

ML 320 [163] 160KW/ 218HP 3.2l 09.2000 - 09.2002

S 280 [220] 150KW/ 204HP 2.8l 09.2000 - 08.2002

S 280 [220] 150KW/ 204HP 2.8l 09.2000 - 08.2005

S 320 [220] 165KW/ 224PS 3.2l 09.2000 - 08.2002

Viano 3.2 [639] 140KW/ 190PS 3.2l 09.2003 - 12.2007

Viano 3.2 [639] 160KW/ 218PS 3.2l 09.2003 - 12.2007

123 Vito [639] 170KW/ 231PS 3.7l 06.2004 - 08.2007

ML 350 [163] 173KW/ 235HP 3.7l 02.2003 - 06.2005

ML 350 [163] 180KW/ 245HP 3.7l 08.2002 - 01.2003

S 350 4MATIC [220] 180KW/ 245PS 3.7l 06.2003 - 08.2005

S 350 [220] 180KW/ 245HP 3.7l 09.2002 - 08.2005

S 350 [220] 180KW/ 245HP 3.7l 09.2002 - 08.2006

SL 350 [230] 180KW/ 245PS 3.7l 03.2003 - 12.2005
