Seal kit repair kit injection nozzle Mercedes Benz M271 - 4 cylinder

12-piece seal kit repair kit for injection nozzles including filter for all Mercedes Benz vehicles with M271 engines

C / E / CLK / SLK Class - 4 cylinder

Over the years, dirt and dust build up in the injection nozzles.
The O-rings harden over time. The main causes are moisture and mechanical stress.
The effects of fats, oils and heat can also intensify this development. It is a slow but inconspicuous process.

Injector reference number: A2C59506219 / A2710780023 / A2710780549

By replacing the seal repair kit as shown in our pictures, you can overhaul your injectors.
For this it is necessary to replace the leaky seals with our new and qualitative ones.

The consequences of an injection nozzle fault can be higher fuel consumption, local overheating, especially when the faulty spray pattern becomes a thin spray and hits the piston crown.

Jerking or stuttering engine, starting difficulties and even engine damage are possible!

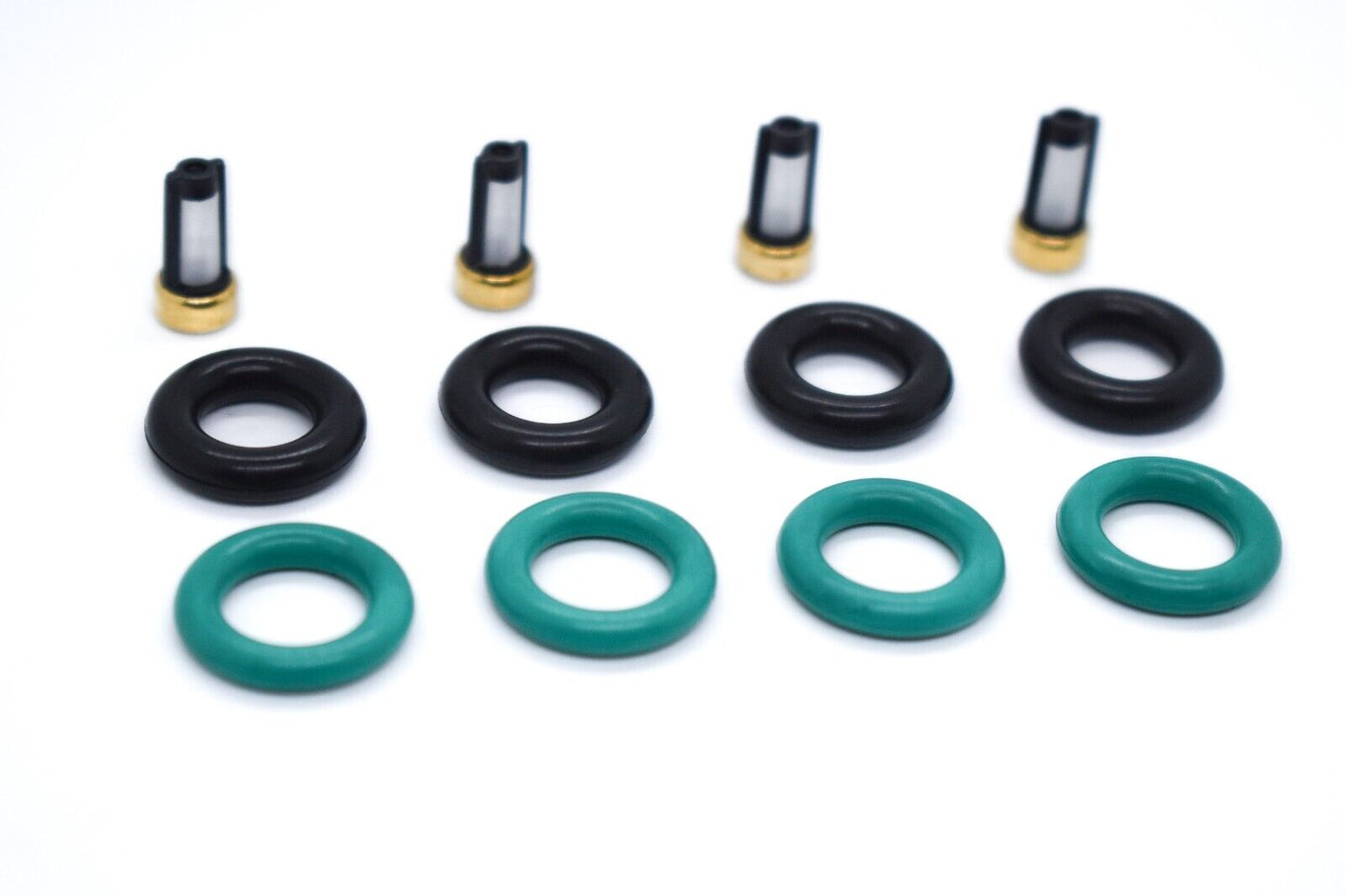

Scope of delivery, see pictures:
4x filter inserts
4x O-ring top / black
4x O-ring bottom / green

Suitable for the following Mercedes models (4 cylinders):

C 180 1.8 Kompressor (203.046), year of manufacture 05.2002 - 02.2007, 1796 cc, 143 HP

C 200 CGI 1.8 Kompressor (203.043), year of manufacture 07.2003 - 02.2007, 1796 cc, 170 HP

C 200 1.8 Kompressor (203.042), year of manufacture 05.2002 - 02.2007, 1796 cc, 163 HP

C 230 1.8 Kompressor (203.040), year of manufacture 02.2004 - 02.2007, 1796 cc, 192 HP

C 180 1.8 Kompressor (204.046), year of manufacture 01.2007 - 01.2014, 1796 cc, 156 HP

C 200 1.8 Kompressor (204.041), year of manufacture 01.2007 - 01.2014, 1796 cc, 184 hp

C 160 1.8 Kompressor (203.730), year of manufacture 05.2002 - 05.2008, 1796 cc, 122 HP

C 180 1.8 Kompressor (203.746), year of manufacture 05.2002 - 05.2008, 1796 cc, 143 HP

C 200 CGI 1.8 Kompressor (203.743), year of manufacture 03.2003 - 05.2008, 1796 cc, 170 HP

C 200 1.8 Kompressor (203.742), year of manufacture 05.2002 - 05.2008, 1796 cc, 163 HP

C 220 1.8, year of manufacture 05.2002 - 05.2008, 1796 cc, 163 HP

C 230 1.8 Kompressor (203.740), year of manufacture 05.2002 - 05.2008, 1796 cc, 192 HP

C 180 1.8 Kompressor (203.246), year of manufacture 05.2002 - 08.2007, 1796 cc, 143 HP

C 200 CGI 1.8 Kompressor (203.243), year of manufacture 07.2003 - 08.2007, 1796 cc, 170 HP

C 200 1.8 Kompressor (203.242), year of manufacture 05.2002 - 08.2007, 1796 cc, 163 HP

C 230 1.8 Kompressor (203.240), year of manufacture 02.2004 - 08.2007, 1796 cc, 192 HP

C 180 1.8 Kompressor (204.246), year of manufacture 08.2007 - 08.2014, 1796 cc, 156 HP

C 200 1.8 Kompressor (204.241), year of manufacture 08.2007 - 08.2014, 1796 cc, 184 hp

CLC 180 1.8 Kompressor (203.746), year of manufacture 05.2008 - 06.2011, 1796 cc, 143 HP

CLC 200 1.8 Kompressor (203.741), year of manufacture 05.2008 - 06.2011, 1796 cc, 184 HP

CLK Coupe (C209) (Year of construction 09.2002 - 05.2009, 163 - 184 PS, petrol)

200 CGI 1.8 (209.343), year of manufacture 07.2003 - 05.2009, 1796 cc, 170 HP

200 1.8 Kompressor (209.341), year of manufacture 10.2006 - 05.2009, 1796 cc, 184 hp

200 1.8 Kompressor (209.342), year of manufacture 09.2002 - 05.2009, 1796 cc, 163 hp

CLK 200 CGI 1.8 (209.443), year of manufacture 07.2003 - 03.2010, 1796 cc, 170 HP

CLK 200 1.8 Kompressor (209.441), year of manufacture 10.2006 - 03.2010, 1796 cc, 184 HP

CLK 200 1.8 Kompressor (209.442), year of manufacture 02.2003 - 03.2010, 1796 cc, 163 HP

E 200 1.8 Kompressor (211.041), year of manufacture 04.2006 - 12.2008, 1796 cc, 184 HP

E 200 1.8 Kompressor (211.042), year of manufacture 11.2002 - 12.2008, 1796 cc, 163 hp

E 200 NGT 1.8 (211.041), year of manufacture 03.2004 - 12.2008, 1796 cc, 163 HP

E 200 NGT 1.8 (212.041), year of manufacture 03.2011 - ..., 1796 cc, 163 hp

E 200 1.8 Kompressor (211.241), year of manufacture 04.2006 - 07.2009, 1796 cc, 184 hp

E 200 1.8 Kompressor (211.242), year of manufacture 03.2003 - 07.2009, 1796 cc, 163 HP

MERCEDES-BENZ SLK (R171) (Year of construction 03.2004 - 02.2011, 163 - 184 PS, petrol)

200 1.8 Kompressor (171.442), year of manufacture 03.2004 - 02.2011, 1795 cc, 163 hp

200 1.8 Kompressor (171.445), year of manufacture 01.2008 - 02.2011, 1796 cc, 184 hp

MERCEDES-BENZ Sprinter 3.5-T Bus (W906) (Year of construction 09.2008 - ..., 156 PS, petrol, petrol/LPG)

316 1.8 (906.733, 906.735), year of manufacture 09.2008 - ..., 1796 cc, 156 hp

316 LGT 1.8, year of manufacture 09.2008 - ..., 1796 cc, 156 HP

316 1.8 (906.663, 906.635), year of manufacture 09.2008 - ..., 1796 cc, 156 hp

316 LGT 1.8 (906.633, 906.635), year of manufacture 09.2008 - ..., 1796 cc, 156 hp

316 NGT 1.8 (906.633, 906.635), year of manufacture 09.2008 - ..., 1796 cc, 156 hp

516 1.8 (906.153, 906.155, 906.253, 906.255), year of manufacture 09.2008 - ..., 1796 cc, 156 HP

516 NGT 1.8 (906.153, 906.155, 906.253, 906.255), year of manufacture 09.2008 - ..., 1796 cc, 156 hp
